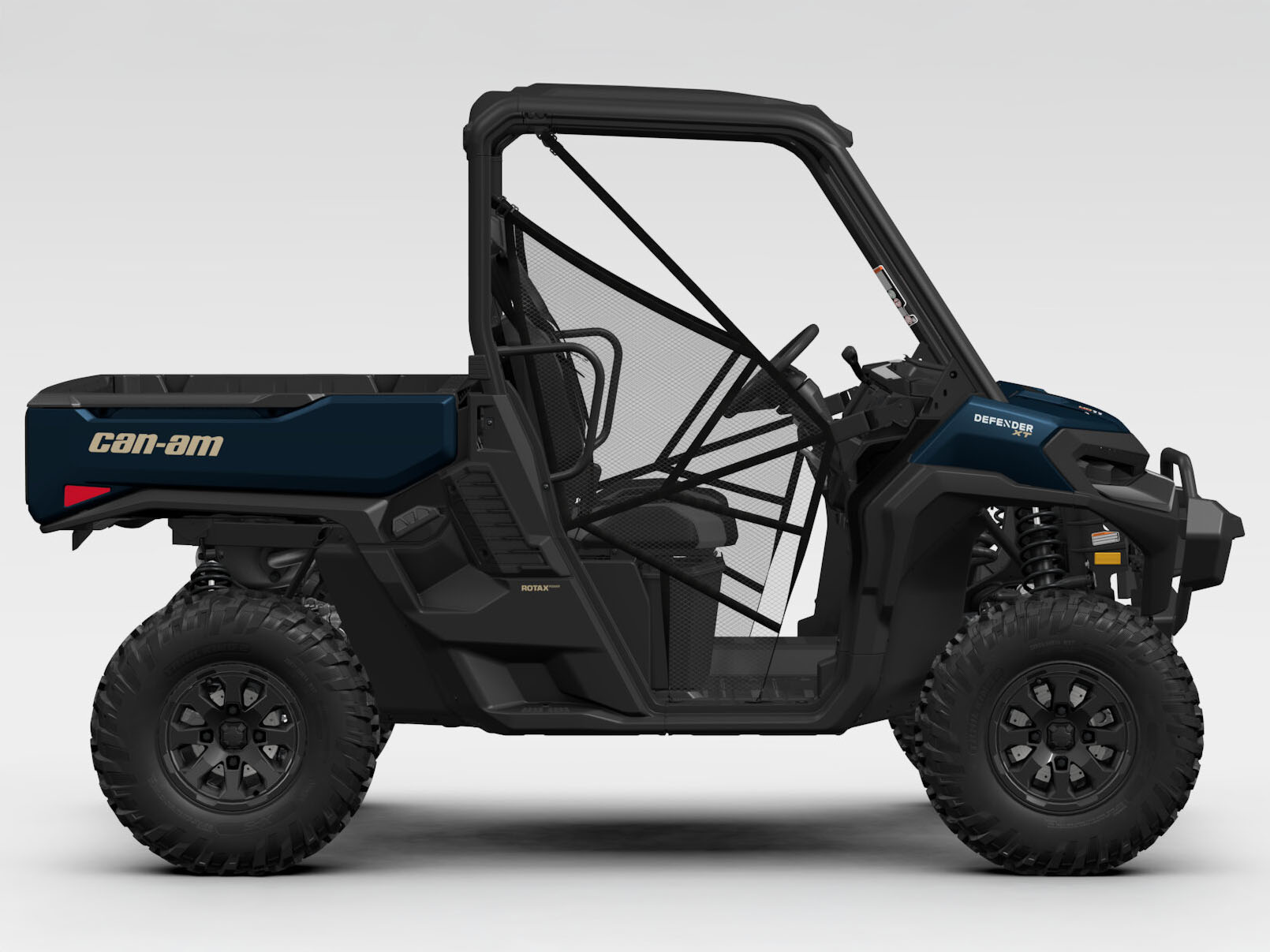

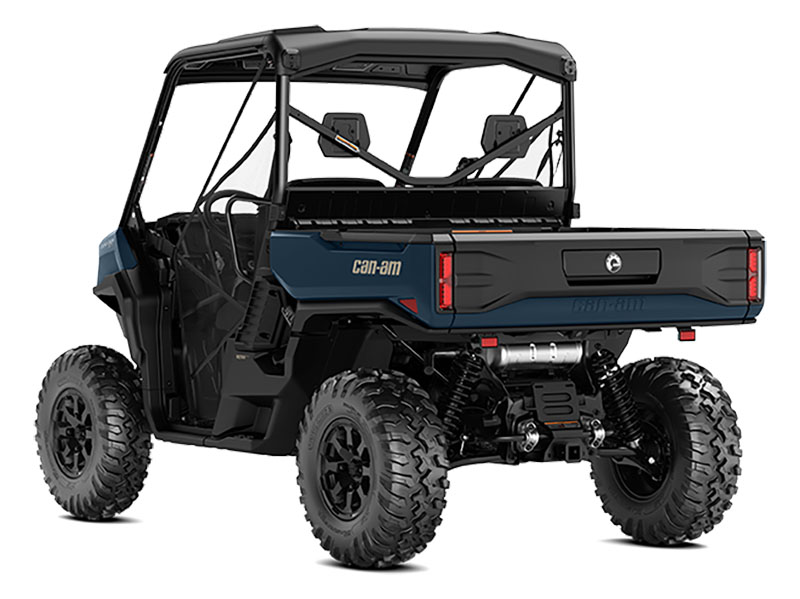

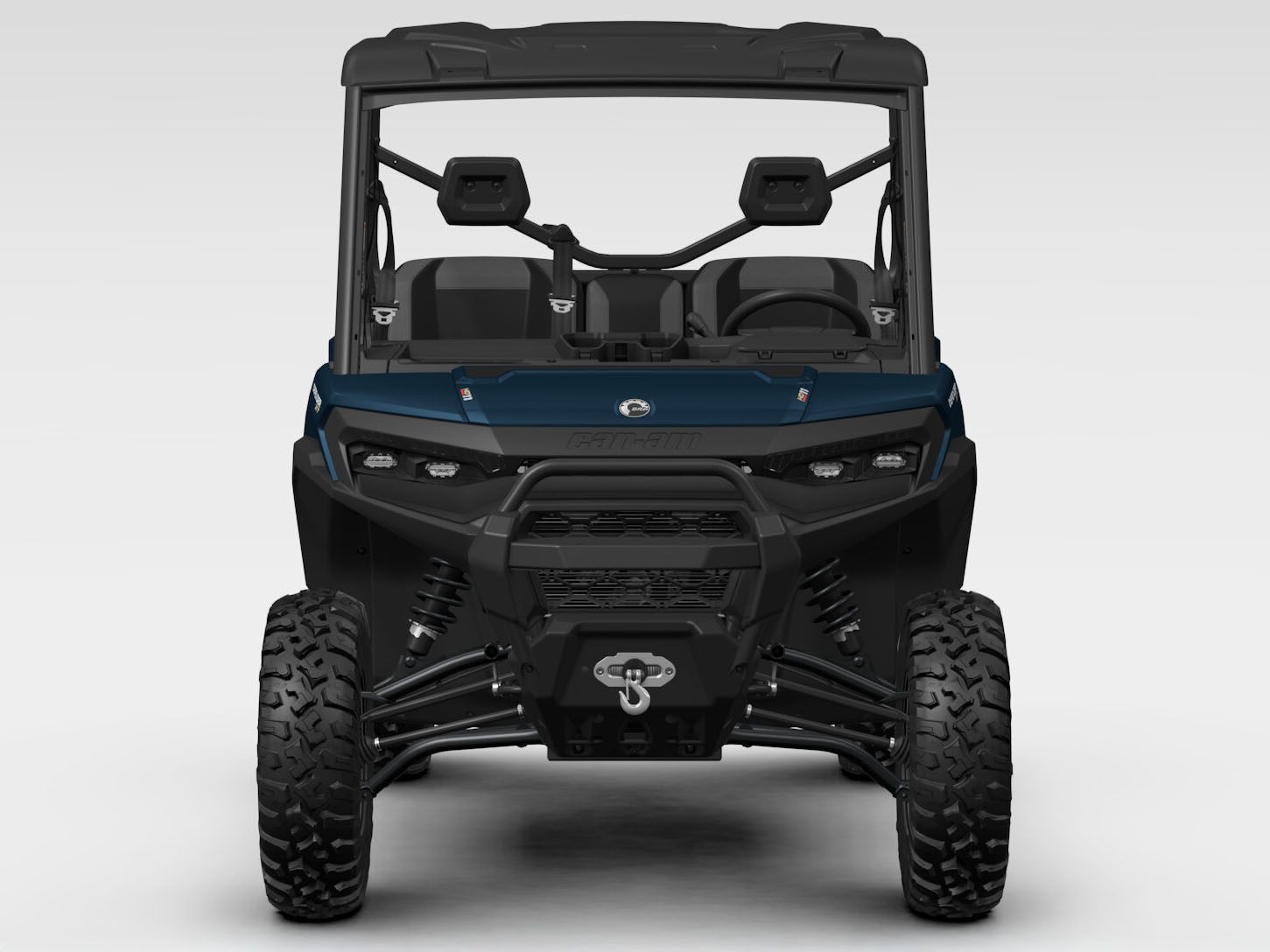

2026 Can-Am Defender XT HD11 with 10.25 in. touchscreen display in Columbia, Missouri — 2026 Can-Am Defender XT HD11 with 10.25 in. touchscreen display

View Details

Specs
Features

General Information

Manufacturer

Can-Am

Model Year

2026

Model

Defender XT HD11 with 10.25 in. touchscreen display

Model Code

8CTJ

Color

Dusty Navy

Brakes/Wheels/Tires

Brakes

Front - Dual 10.31 in. (262 mm) disc with hydraulic twin-piston calipers 1.25 in. (32 mm)

Rear - Dual 9.29 in. (236 mm) disc with hydraulic single-piston calipers 1.25 in. (32 mm)

Brake Holding Mechanism

Standard

Front - Dual 10.31 in. (262 mm) disc with hydraulic twin-piston calipers 1.25 in. (32 mm)

Rear - Dual 9.29 in. (236 mm) disc with hydraulic single-piston calipers 1.25 in. (32 mm)

Brake Holding Mechanism

Standard

Wheels

14 in. cast-aluminum

Tires

Front / Rear - XPS Trail King 2 29 x 9 / 11 x 14 in.

Dimensions

Length

129.8 in. (330 cm)

Height

81 in. (206 cm)

Width

65 in. (165 cm)

Weight

Estimated dry - 1,870 lb. (848 kg)

Ground Clearance

14 in. (35.6 cm)

Wheelbase

85 in. (216 cm)

Drivetrain

Transmission

pDrive primary and Quick Response System X (QRS-X) CVT with high airflow and Electronic Drive Belt Protection L / H / N / R / P

Drive System

Drivetrain - Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential

Drive

Assistance - CVT Engine Braking Sport / Normal / Work modes Speed Limiter

Electrical

Battery

400 CCA (32 A/h)

12V (cargo outlet)

400 CCA (32 A/h)

12V (cargo outlet)

Alternator

Magneto - 650W

Instrumentation

Gauge - 4.5 in. wide digital display with keypad and 10.25 in. touchscreen display

USB outlets, Lighter DC outlet, Cargo 12V outlet

Gauge - 4.5 in. wide digital display with keypad and 10.25 in. touchscreen display

USB outlets, Lighter DC outlet, Cargo 12V outlet

Lighting

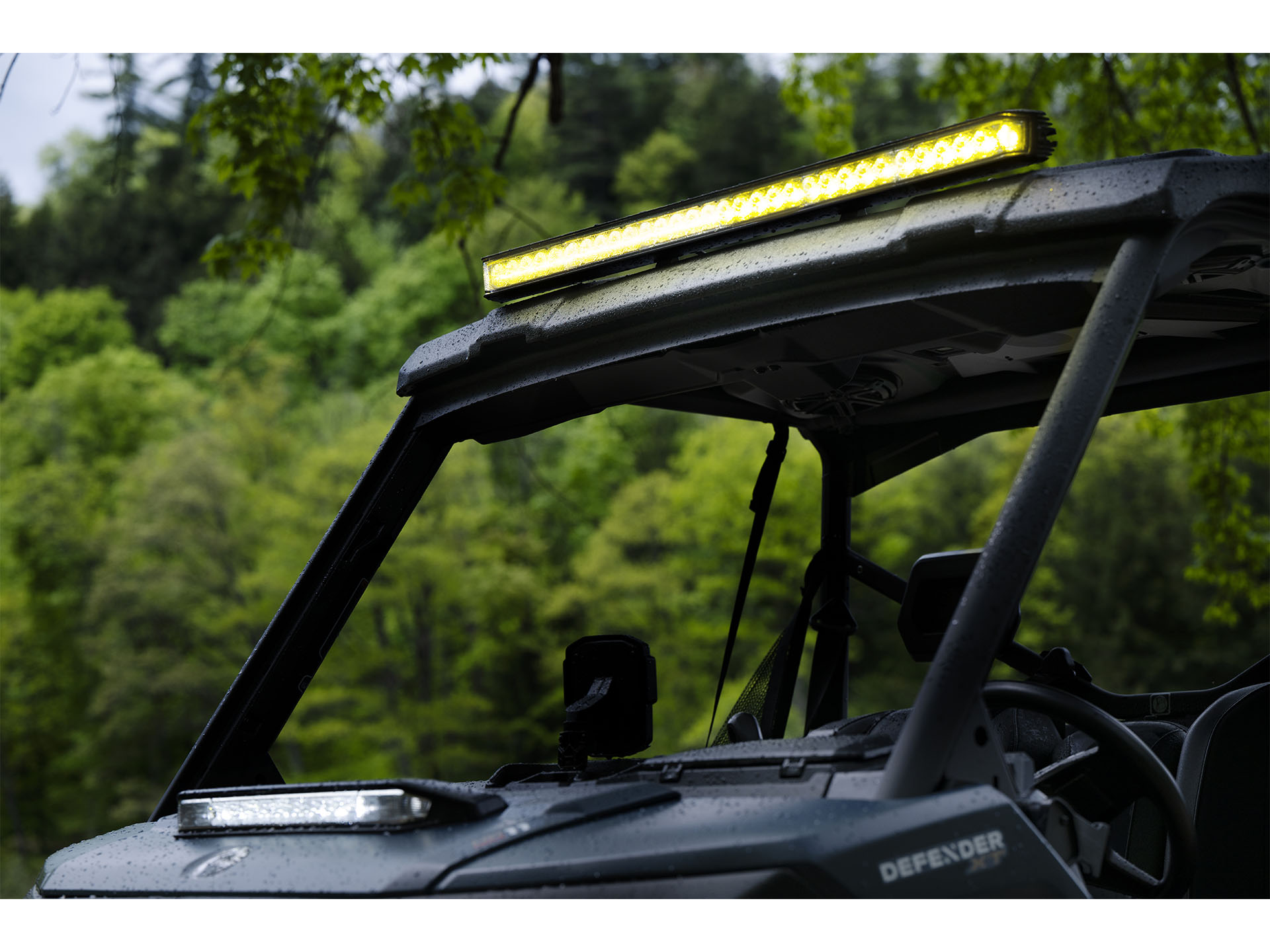

LED headlights, LED taillights with back up

Engine

Rotax® ACE (Advanced Combustion Efficiency)

Cooling

Liquid

Cylinders

Triple

Horsepower

95 hp

Displacement

999 cc

Torque

70 lb.

Fuel System

Fuel delivery system - Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Fuel Capacity

11.9 gal. (45 l)

Operational

Frame

Cage - Profiled cage ROPS approved

Front Suspension

Arched Double A-Arm with sway bar

Travel - 12 in. (30.5 cm)

Front shocks - Twin tube gas charged

Arched Double A-Arm with sway bar

Travel - 12 in. (30.5 cm)

Front shocks - Twin tube gas charged

Rear Suspension

Arched Double A-Arm

Travel - 12 in. (30.5 cm)

Rear shocks - Twin tube gas charged

Arched Double A-Arm

Travel - 12 in. (30.5 cm)

Rear shocks - Twin tube gas charged

Suspension

Standard

Steering

Power - High torque Tri‑Mode Dynamic Power Steering (DPS)

Wheel - Premium steering wheel, Adjustable steering wheel with full tilt-up feature

Power - High torque Tri‑Mode Dynamic Power Steering (DPS)

Wheel - Premium steering wheel, Adjustable steering wheel with full tilt-up feature

Seating

Person capacity - 3

Adjustable driver’s 40 / 20 / 40 bolster

Person capacity - 3

Adjustable driver’s 40 / 20 / 40 bolster

Other

Additional Colors

Stealth Black

Dusty Navy

Dark Wildland Camo

Stealth Black

Dusty Navy

Dark Wildland Camo

Cargo Box Capacity

1,000 lb. (454 kg)

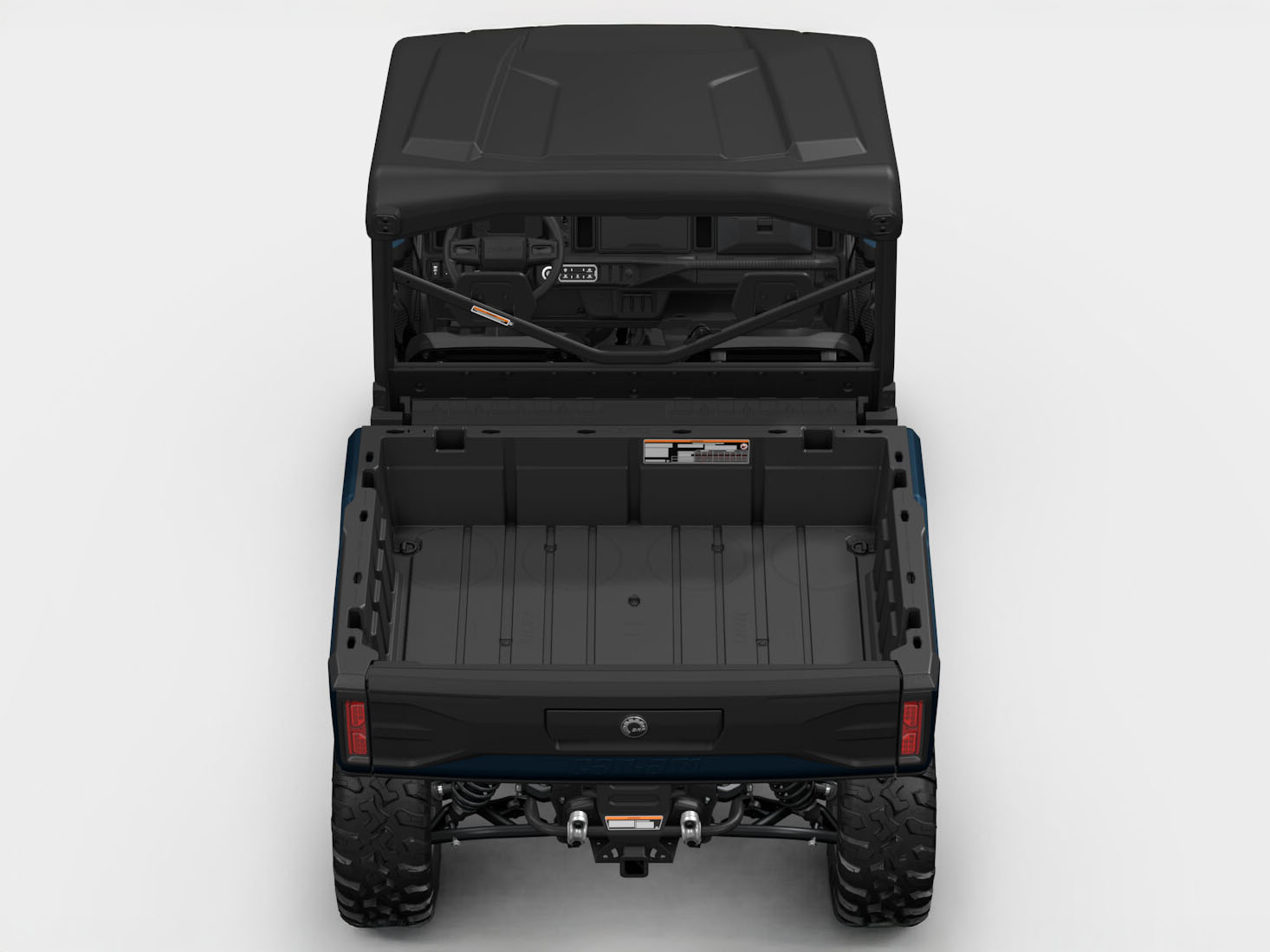

Cargo Box

Dimensions - 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)

Load Capacity

Tailgate - 250 lb (113.4 kg)

Capacity

Storage - Weather resistant above gage glove box including protected cellphone area, USB‑A plug if vehicle is equipped with 10.25 infotainment system, Weather resistant passenger glove box with USB‑C, USB‑A & DC outlet, Cubby storage and lower dash storage, 3.7 gal. (14 l) removable bin

Payload - 1,500 lb. (680 kg)

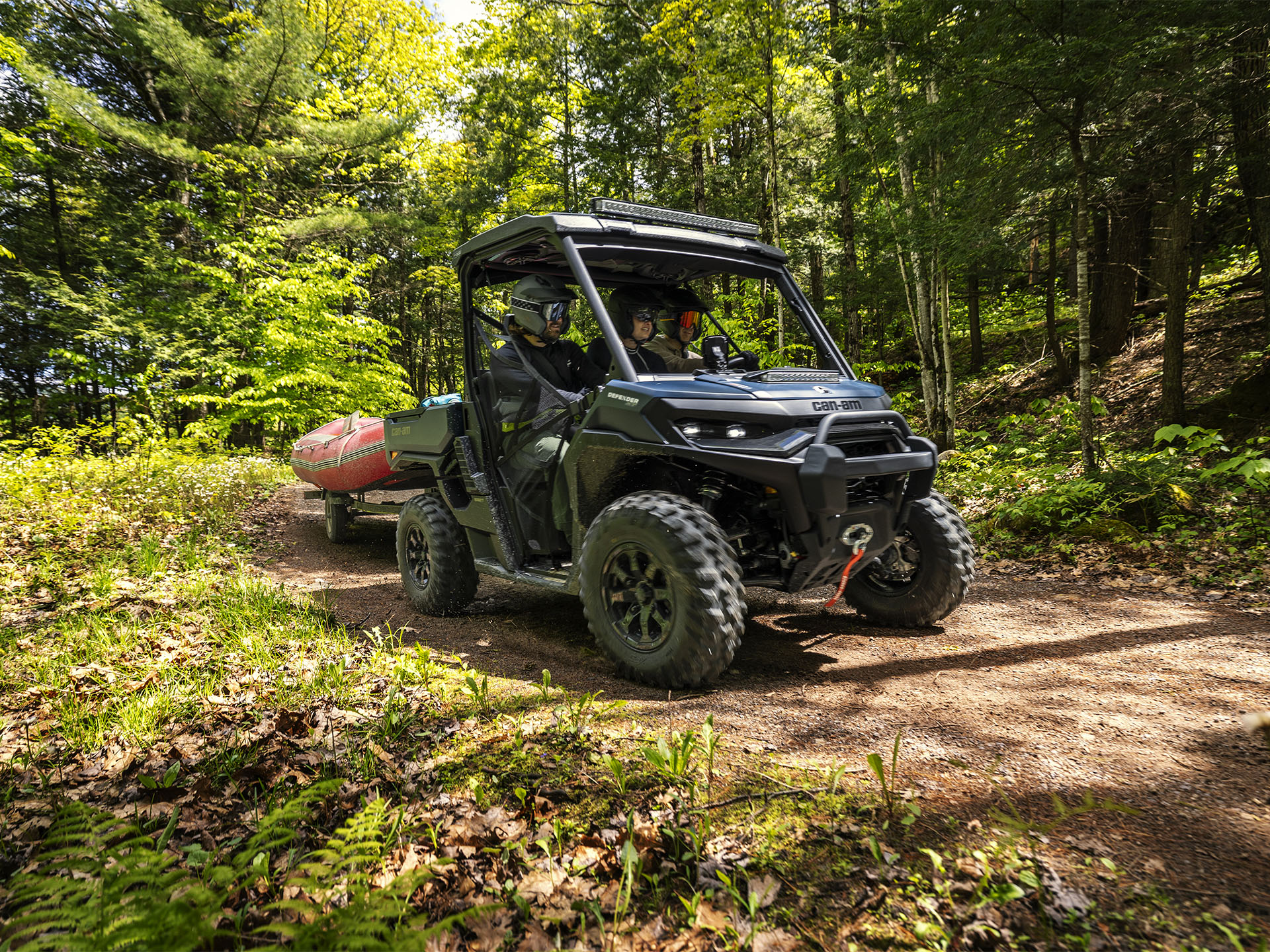

Towing Capacity

2,500 lb. (1,134 kg)

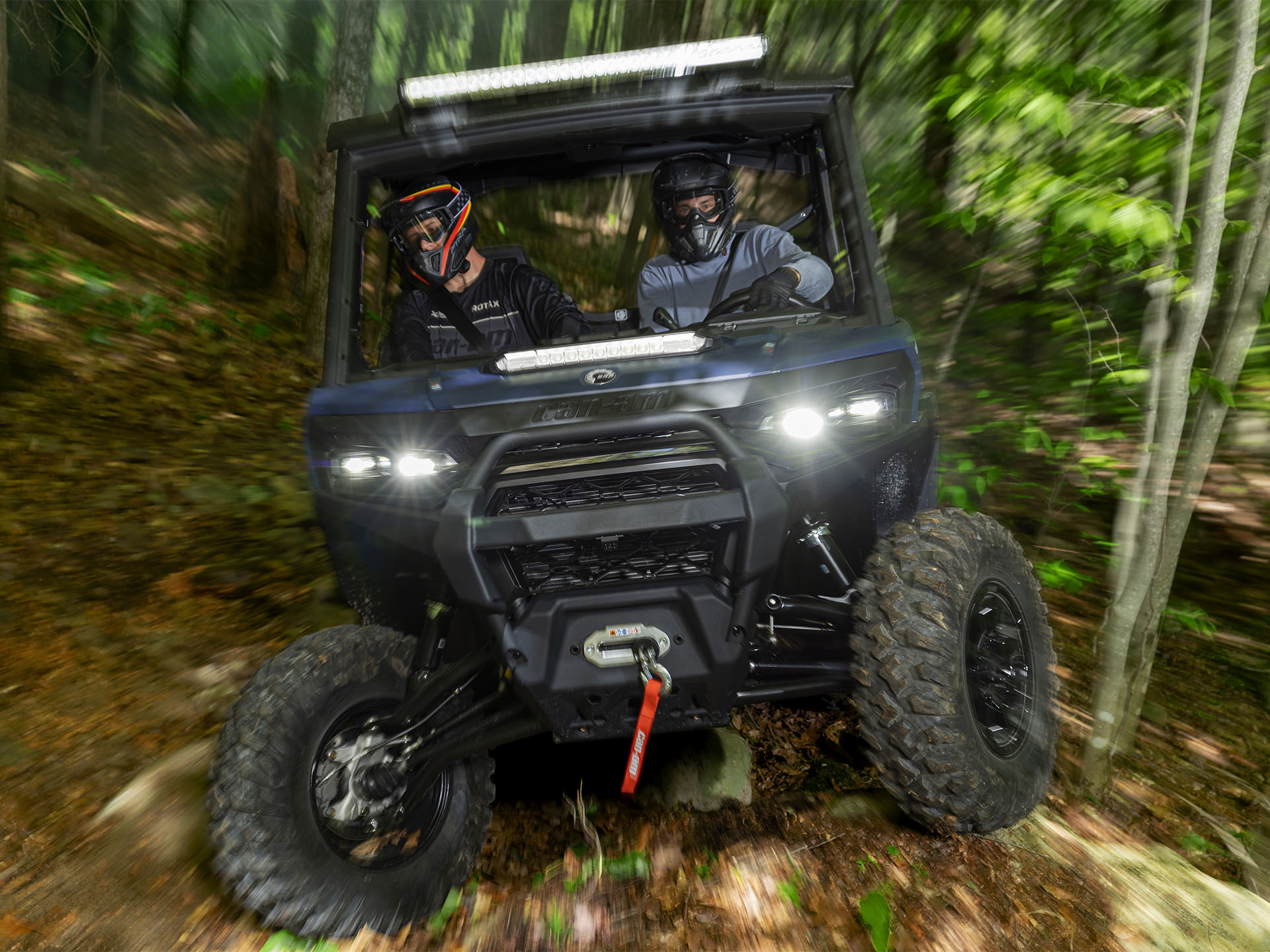

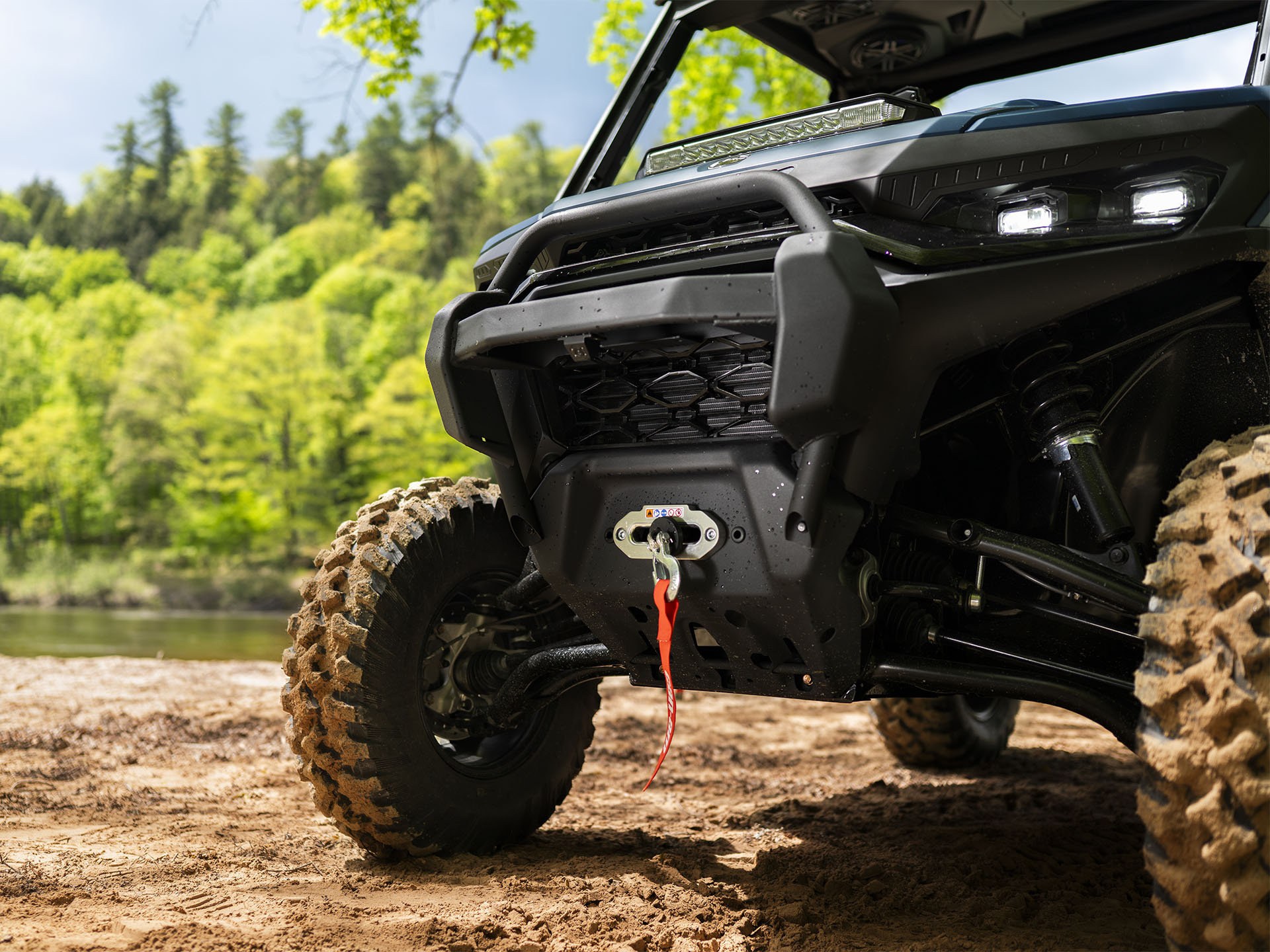

Winch - 4,500 lb. (2,041 kg) winch with synthetic cable

2,500 lb. (1,134 kg)

Winch - 4,500 lb. (2,041 kg) winch with synthetic cable

Hitch

Type - 2 in. receiver

Safety Features

Protection - Full heavy-duty HMW plastic skid plate, Full hard roof, Heavy-duty front bumper, Mudguards, Door safety net

Anti‑theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start / Stop button

Protection - Full heavy‑duty HMW plastic skid plate, Full hard roof, Heavy‑duty front bumper, Mudguards, Door safety net

Protection - Full heavy-duty HMW plastic skid plate, Full hard roof, Heavy-duty front bumper, Mudguards, Door safety net

Anti‑theft System - RF Digitally Encoded Security System (D.E.S.S.™) with Start / Stop button

Protection - Full heavy‑duty HMW plastic skid plate, Full hard roof, Heavy‑duty front bumper, Mudguards, Door safety net

Warranty

Factory - 1-year BRP Limited warranty

Extended service terms - B.E.S.T. term available up to 30 months

Factory - 1-year BRP Limited warranty

Extended service terms - B.E.S.T. term available up to 30 months

10.25" Touchscreen Display

CONNECTED RIDE: Everything You Need At Your Fingertips - Added situational awareness with a clear view of rear and front* camera angles. Easily control accessories from the display. Manage media within the applet on your touchscreen. *Available on certain models

Available cab comfort

ADVANCED HVAC & ENCLOSURE SYSTEM: Smart HVAC With Total Control - Ride in comfort with a sealed cab and optional HVAC system with better airflow, better cooling capacity, fast defrost, rear vents, and refined controls—all designed for quieter, smarter, all-season performance.

Leading Capabilities

BEST-IN-CLASS UTILITY FEATURES: Class-leading Clearance, Cargo, Towing - With exceptional ground clearance, long suspension travel, serious towing and cargo capacity, and reduced NVH, this Defender is built to lead—on the job, off-road, and everywhere in between.

Maintenance

ENGINEERED FOR EASY MAINTENANCE: Easier Access, Smarter Design - With smart service points and tool-free access to key areas, it’s built for less downtime. Double-bounded bushings, bolted skid plate, and ready-to-work durability seal the deal.

Powertrain

REFINED POWER DELIVERY: New Work-tuned HD11 Engine - The new 999cc inline-3 HD11 engine delivers 95 HP and 70 lb-ft of torque. Paired with a smooth-shifting transmission, pDrive, and Quick-4Lok or Smart-Lok front diff, it’s built for control and drivability.

10.25" Touchscreen Display

CONNECTED RIDE: Everything You Need At Your Fingertips - Added situational awareness with a clear view of rear and front* camera angles. Easily control accessories from the display. Manage media within the applet on your touchscreen. *Available on certain models

Available cab comfort

ADVANCED HVAC & ENCLOSURE SYSTEM: Smart HVAC With Total Control - Ride in comfort with a sealed cab and optional HVAC system with better airflow, better cooling capacity, fast defrost, rear vents, and refined controls—all designed for quieter, smarter, all-season performance.

Leading Capabilities

BEST-IN-CLASS UTILITY FEATURES: Class-leading Clearance, Cargo, Towing - With exceptional ground clearance, long suspension travel, serious towing and cargo capacity, and reduced NVH, this Defender is built to lead—on the job, off-road, and everywhere in between.

Maintenance

ENGINEERED FOR EASY MAINTENANCE: Easier Access, Smarter Design - With smart service points and tool-free access to key areas, it’s built for less downtime. Double-bounded bushings, bolted skid plate, and ready-to-work durability seal the deal.

Powertrain

REFINED POWER DELIVERY: New Work-tuned HD11 Engine - The new 999cc inline-3 HD11 engine delivers 95 HP and 70 lb-ft of torque. Paired with a smooth-shifting transmission, pDrive, and Quick-4Lok or Smart-Lok front diff, it’s built for control and drivability.
