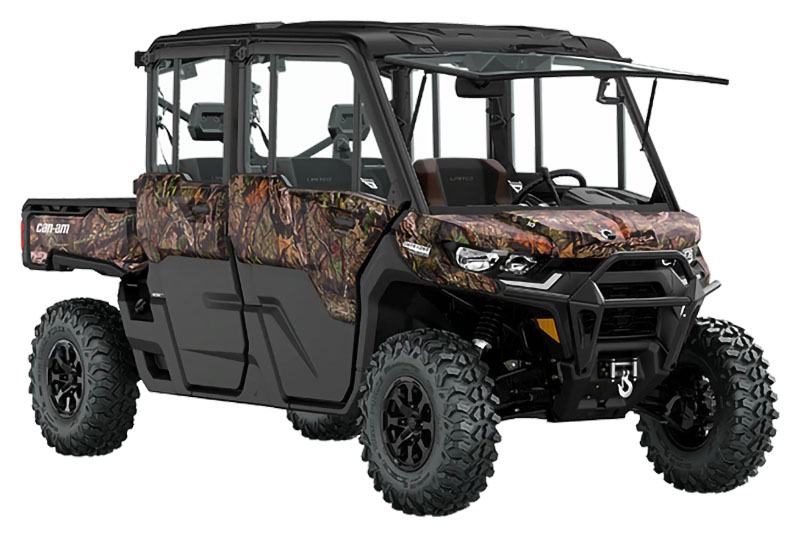

2023 Can-Am Defender MAX Limited in Columbia, Missouri — 2023 Can-Am Defender MAX Limited

View Details

Specs
Features

General Information

Manufacturer

Can-Am

Model Year

2023

Model

Defender MAX Limited

Model Code

6MPE

Color

Mossy Oak Break-Up Country Camo

Brakes/Wheels/Tires

Brakes

Front - Dual 220 mm ventilated disc with hydraulic twin-piston calipers

Rear - Dual 220 mm ventilated disc with hydraulic twin-piston calipers

Holding mechanism

Front - Dual 220 mm ventilated disc with hydraulic twin-piston calipers

Rear - Dual 220 mm ventilated disc with hydraulic twin-piston calipers

Holding mechanism

Wheels

14 in. cast-aluminum

Tires

Front - XPS Trac Force 30 x 9 x 14 in.

Rear - XPS Trac Force 30 x 10 x 14 in.

Front - XPS Trac Force 30 x 9 x 14 in.

Rear - XPS Trac Force 30 x 10 x 14 in.

Dimensions

Length

158 in. (402 cm)

Height

81 in. (226 cm)

Width

65 in. (165.1 cm)

Weight

Estimated Dry - 2,466 lb. (1,119 kg)

Ground Clearance

14 in. (35.56 cm)

Wheelbase

115.5 in. (294 cm)

Drivetrain

Transmission

PRO-TORQ CVT Transmission with Quick Response System (QRS), high-airflow ventilation and Electronic Drive Belt Protection, Extra L/H/N/R/P

Drive System

Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential

Drive

Electronic Hill Descent Control ECO™/ECO™ Off/Work modes

Electrical

Battery

12 V (30 amp/h)

Magneto - 850 W

12 V (30 amp/h)

Magneto - 850 W

Instrumentation

DC outlet (10 A) USB Port (10 A) x 2

Gauge - 7.6 in. wide digital display with keypad

DC outlet (10 A) USB Port (10 A) x 2

Gauge - 7.6 in. wide digital display with keypad

Lighting

Front output 140 W LED Signature LED tail lights

Engine

Rotax®, V-twin

Cooling

Liquid

Horsepower

82 hp

Displacement

976 cc

Torque

69 lb. ft.

Fuel System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Fuel Capacity

10.6 gal. (40 l)

Operational

Frame

Chassis Cage - Profiled cage. ROPS approved

Front Suspension

Arched double A-arm with sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Arched double A-arm with sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Rear Suspension

Arched TTA with external sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Arched TTA with external sway bar

Travel - 12 in. (30.5 cm)

Shocks - Twin tube gas-charged

Steering

Dynamic Power Steering (DPS)

Wheel - Adjustable tilt steering

Dynamic Power Steering (DPS)

Wheel - Adjustable tilt steering

Seating

6 person capacity

VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims

6 person capacity

VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced seat skin featuring Limited package trims

Other

Additional Colors

Stone Gray

Oxford Blue

Mossy Oak Break-Up Country Camo

Desert Tan & Timeless Black

Stone Gray

Oxford Blue

Mossy Oak Break-Up Country Camo

Desert Tan & Timeless Black

Includes

Winch - 4,500 lb. (2,041 kg) with roller fairlead

Auto-heating and air conditioning (HVAC) climate system

Winch - 4,500 lb. (2,041 kg) with roller fairlead

Auto-heating and air conditioning (HVAC) climate system

Cargo Box Length

38 in. (96.5 cm)

Cargo Box Height

12 in. (30.5 cm)

Cargo Box Width

54.5 in. (138.4 cm)

Cargo Box Capacity

600 lb. (272.2 kg)

Load Capacity

1,225 lb. (555 kg)

Tailgate - 250 lb. (113.4 kg)

1,225 lb. (555 kg)

Tailgate - 250 lb. (113.4 kg)

Capacity

Storage Total - 12.7 gal. (48.1 l)

Towing Capacity

2,500 lb. (1,134 kg)

Hitch

2 in. receiver

Safety Features

Protection - XT front bumper HMWPE full skid plate Full hard roof with liner and interior dome light Full color match doors with electric opening windows in front in front 3-position full glass tilt up windshield with wiper/washer kit Rear glass window

Warranty

Factory - 1-year BRP limited

Extended Service Terms - B.E.S.T. term available up to 30 months

Factory - 1-year BRP limited

Extended Service Terms - B.E.S.T. term available up to 30 months

HVAC

HVAC: No sweat: Available climate control - Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

Interior Comfort

BENCH SEAT WITH BOLSTERS: We’re talking smooth - Comfort isn’t just about the driver's seat. It’s advanced comfort for all day group riding. Intuitive cockpit with optimized visibility and additional lateral support with reinforced seat skin make for effortless hopping in and out. Underside hooks, Flip-up seat and adjustable driver's seat? You got those too. Comfort is king.

Torque

TORQUE ON DEMAND: PRO-TORQ CVT transmission and on-the-fly 4WD - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential puts the power down on any terrain. The PRO-TORQ CVT on HD9 and HD10 models provides improved cooling and electronic belt protection for more durability.

HVAC

HVAC: No sweat: Available climate control - Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

Interior Comfort

BENCH SEAT WITH BOLSTERS: We’re talking smooth - Comfort isn’t just about the driver's seat. It’s advanced comfort for all day group riding. Intuitive cockpit with optimized visibility and additional lateral support with reinforced seat skin make for effortless hopping in and out. Underside hooks, Flip-up seat and adjustable driver's seat? You got those too. Comfort is king.

Torque

TORQUE ON DEMAND: PRO-TORQ CVT transmission and on-the-fly 4WD - Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential puts the power down on any terrain. The PRO-TORQ CVT on HD9 and HD10 models provides improved cooling and electronic belt protection for more durability.
